Ball Dispenser Parts

Click on a part to view the image...

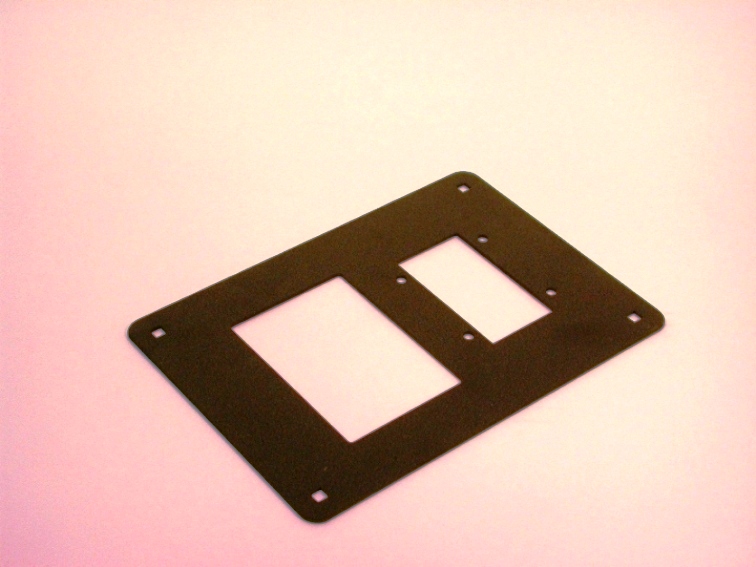

BD-024 FRONT PANEL, BLACK, MONARCH WITH HARDWARE

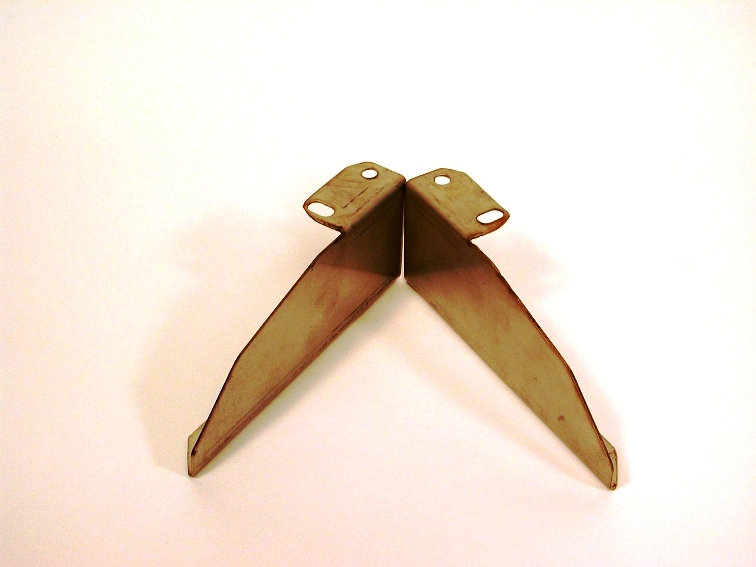

BD-032 BRACKET, BALL COUNT, LEFT/RIGHT 4" x 6" 18 GA 304 SS, DISPENSER

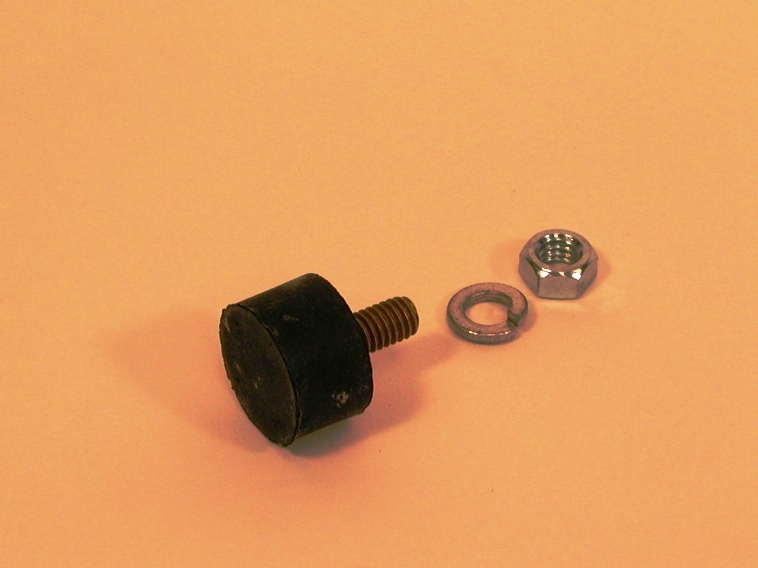

BD-035 BUMPER PAD 3CC16 CYLINDRICAL VIBRATION ISOLATOR

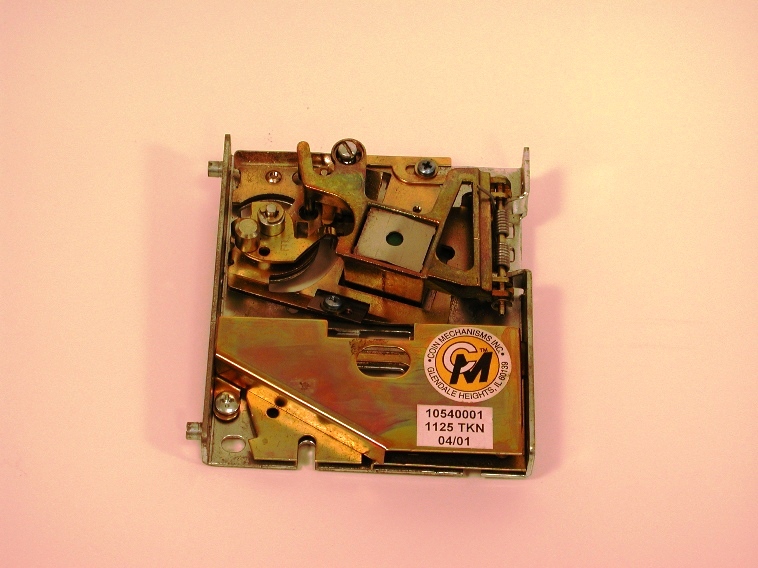

BD-037 COIN MECHANISM, 1.125 10540001

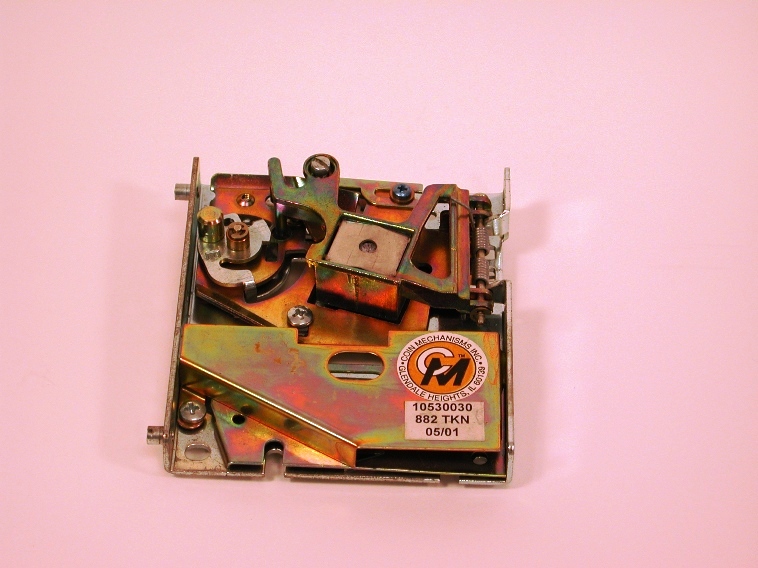

BD-038 COIN MECHANISM, .882

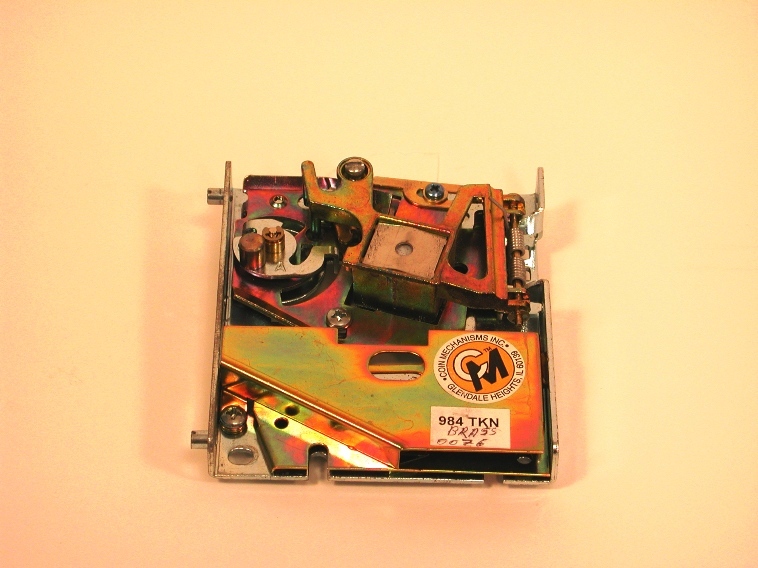

BD-039 COIN MECHANISM, .984

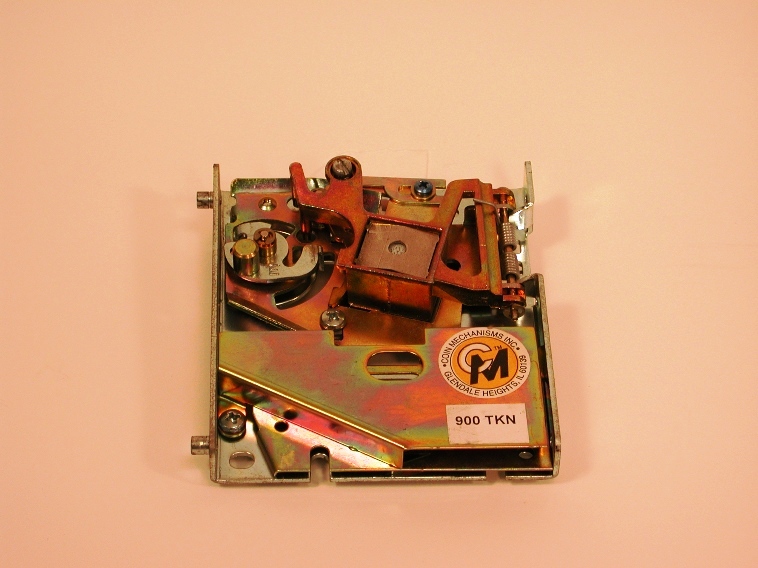

BD-040 COIN MECHANISM, .900 10530038

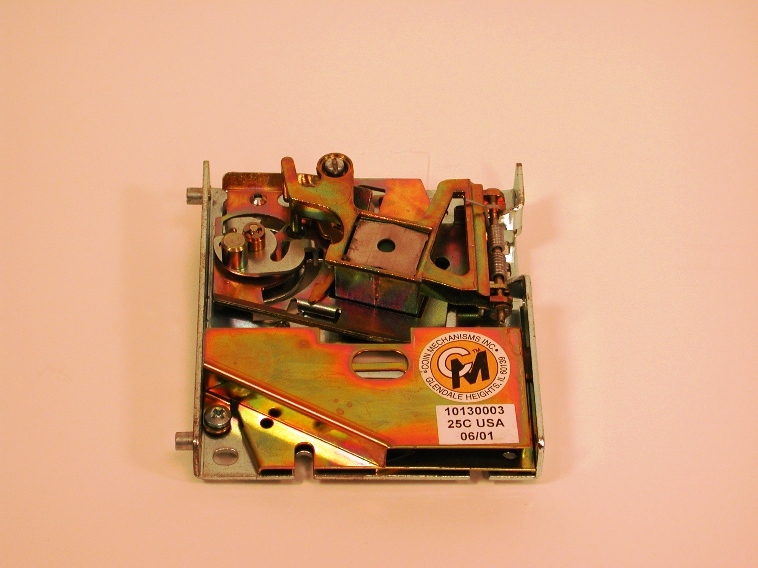

BD-041 COIN MECHANISM, QUARTER
BD-042 COIN SLIDE, V8 MAN, QUARTER

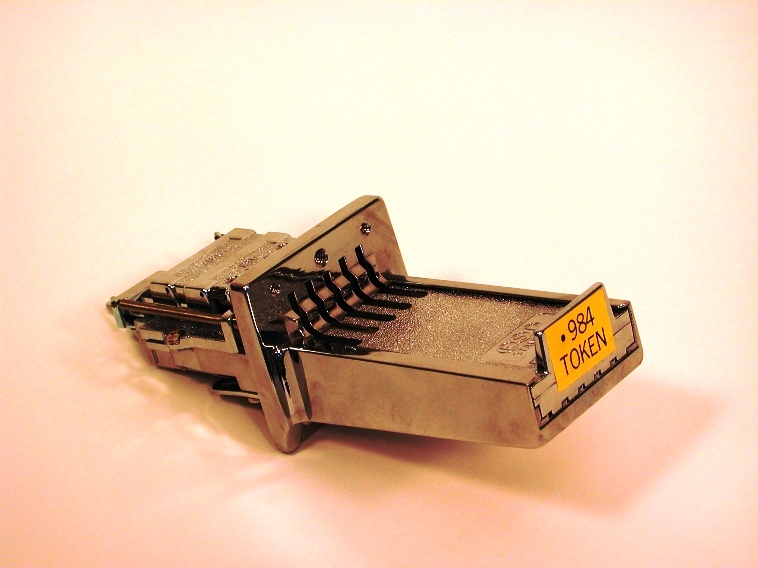

BD-043 COIN SLIDE, V5 MAN, .984 SPECIFY NUMBER OF OPENINGS

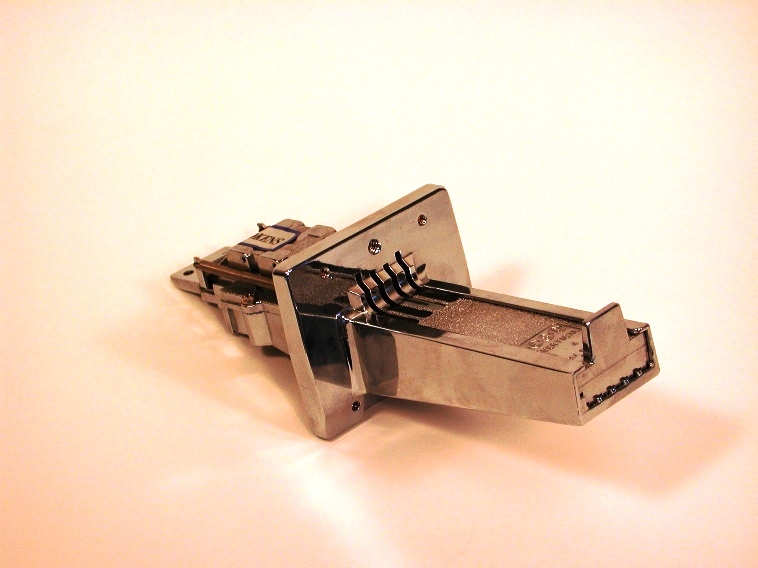

BD-044 COIN SLIDE, V4 MAN, DOUBLE "D" 1-OPENING

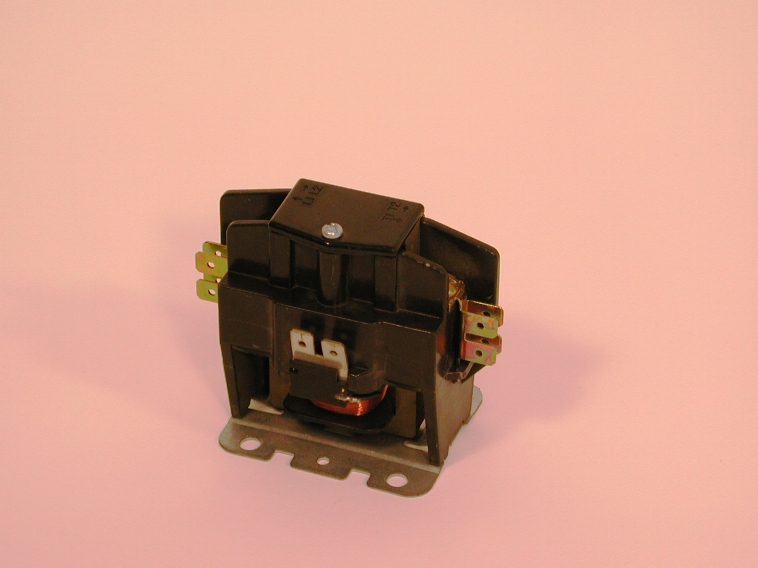

BD-045 CONTACTOR, DEFINITE PURPOSE 1P, 120V, FURNAS 45CG10AFB

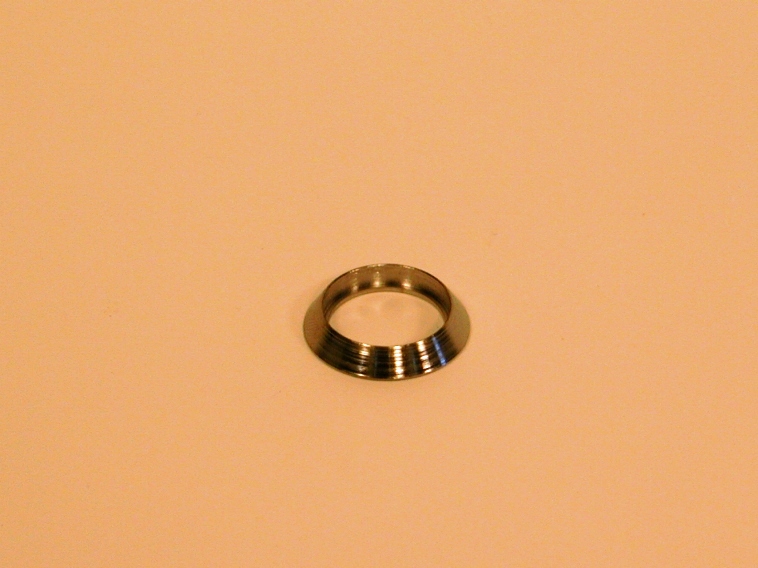

BD-047 COLLAR, BRASS

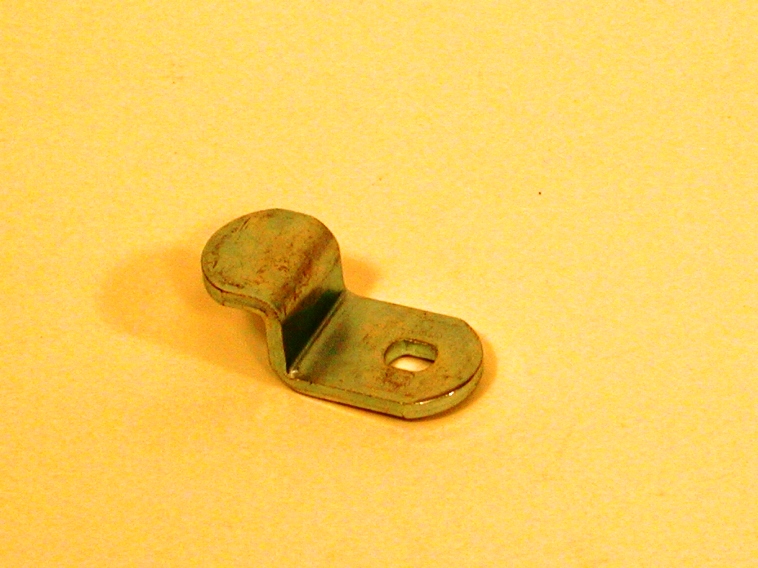

BD-048 CAM, 1.1251
BD-050 COIN BOX, MONARCH, #5490 WITH 2 KEYS

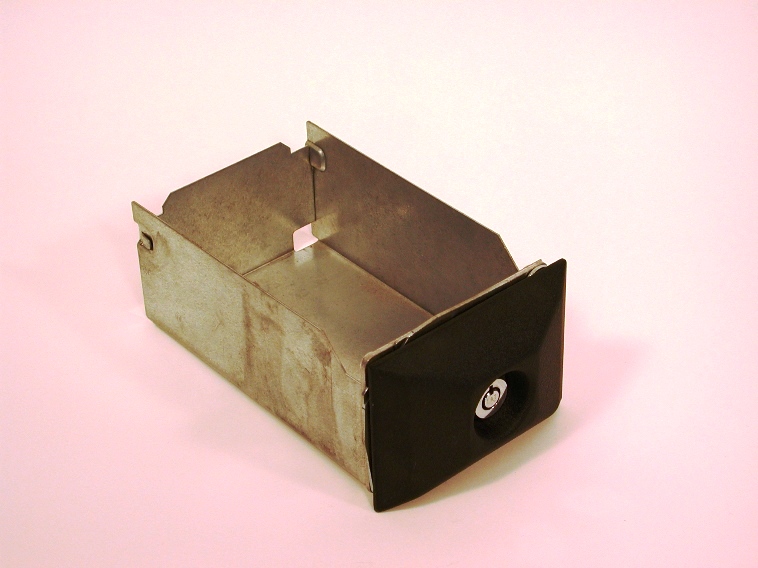

BD-0501 COIN BOX + 2 KEYS W/1999 KEY CODE JBL-A-BKMDK938

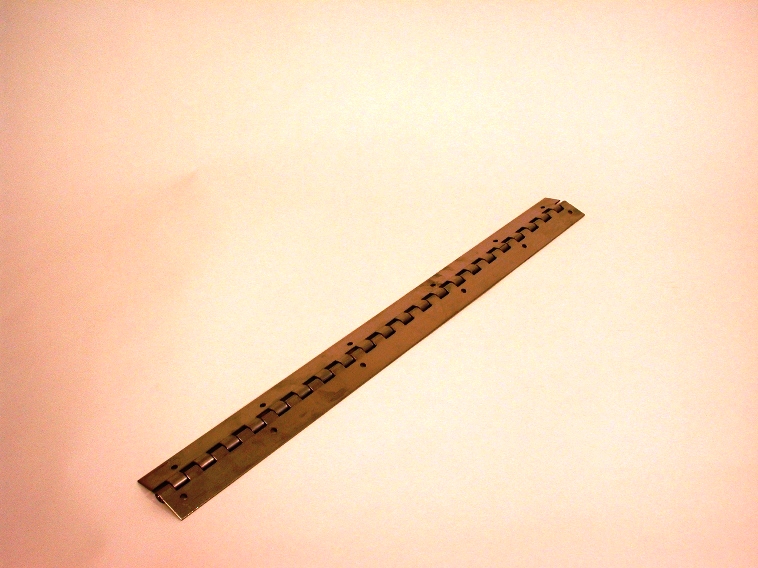

BD-051 HINGE, S.S. MARLBORO, 21"

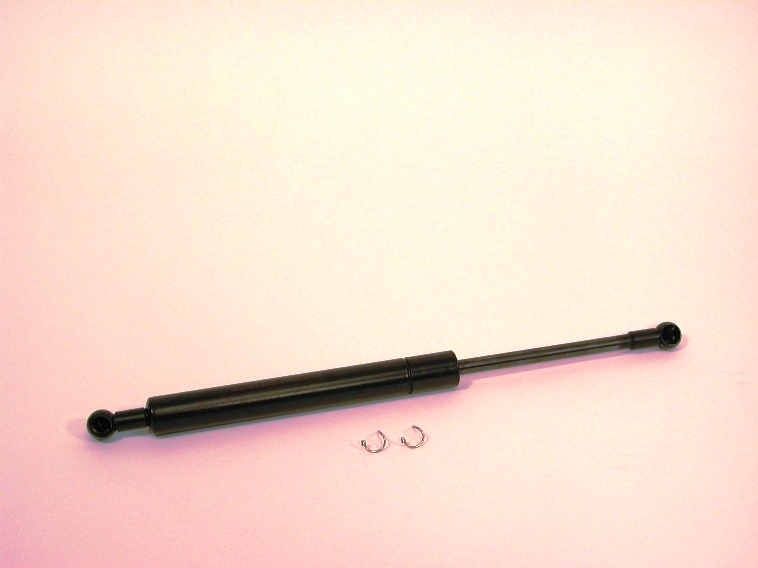

BD-053 SPRING, EBERHARD PNEUMATIC 2 FITTINGS/2 CLIPS,EAA8350-20U

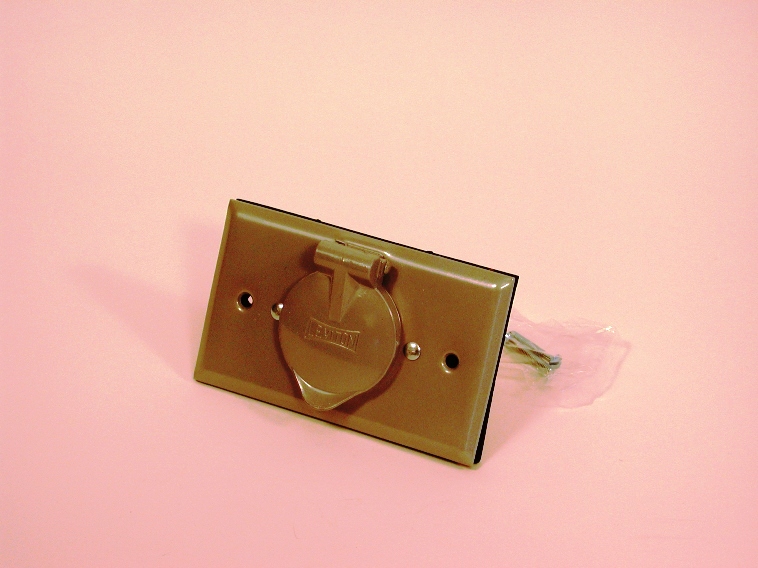

BD-056 RECEPTACLE, LEVITON #4937

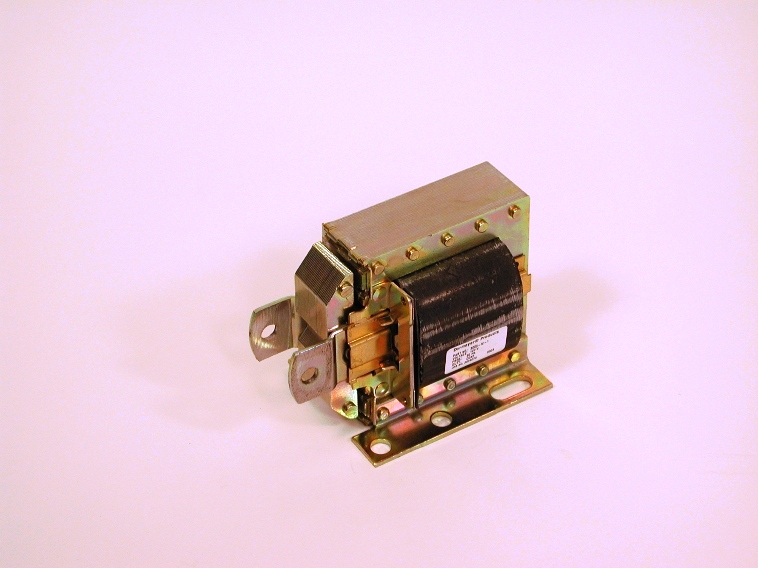

BD-057 SOLENOID, T TYPE L, 120V

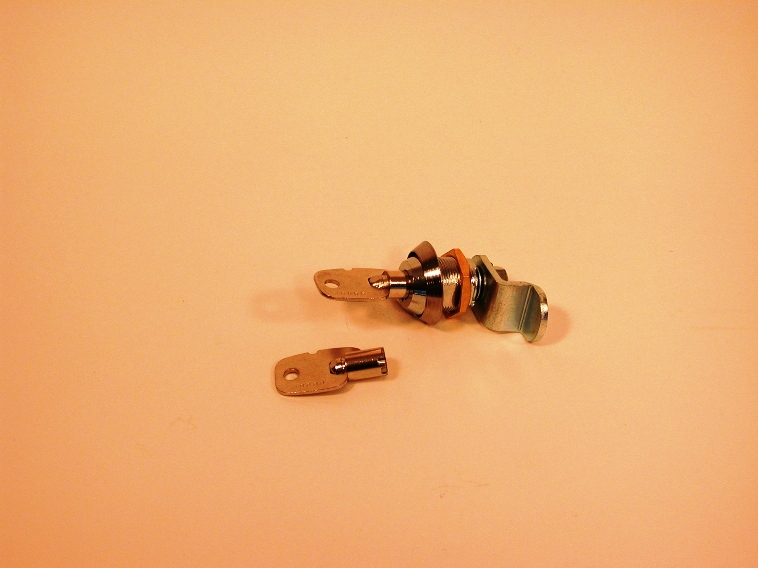

BD-058 LOCK & KEY/CAM/COLLAR, STD, #J0006 WITH 2 KEY, CAM AND COLLAR.

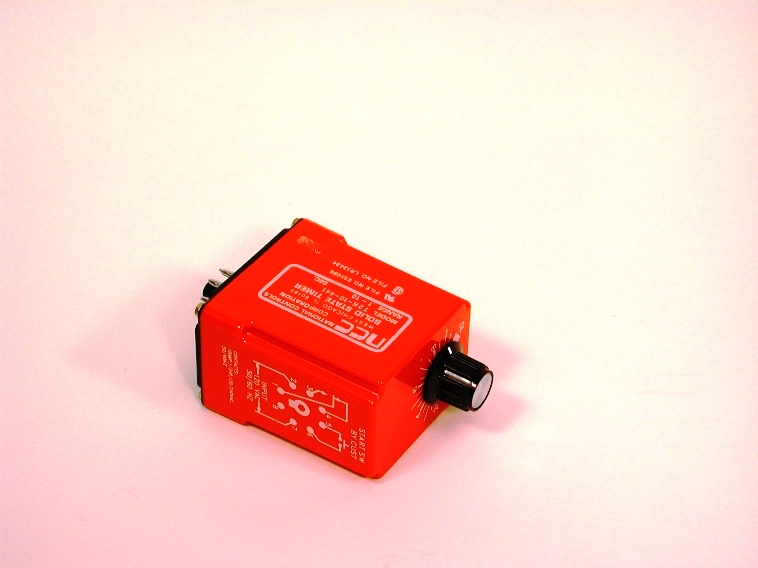

BD-059 TIMER, ORANGE, 120V, 50/60HZ

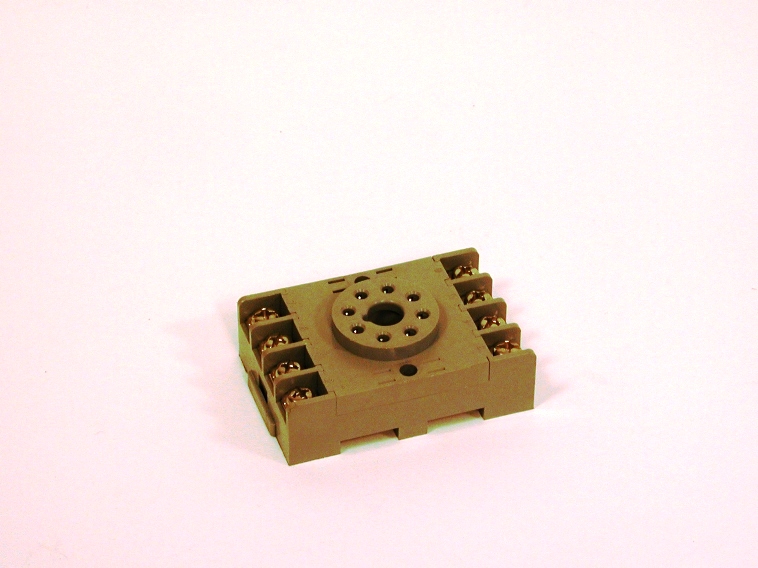

BD-060 SOCKET FOR DISPENSER TIMER IDEC SR2P06

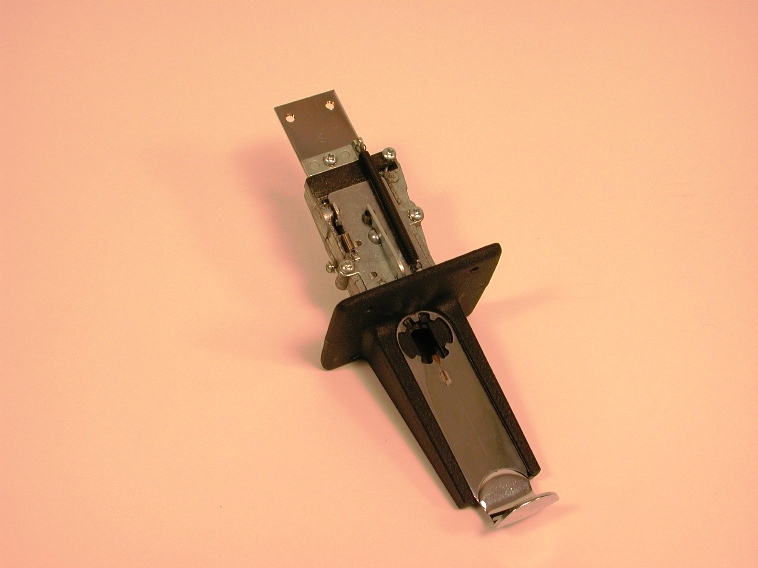

BD-064 COIN SLIDE, H1 MAN, BUTTERFLY

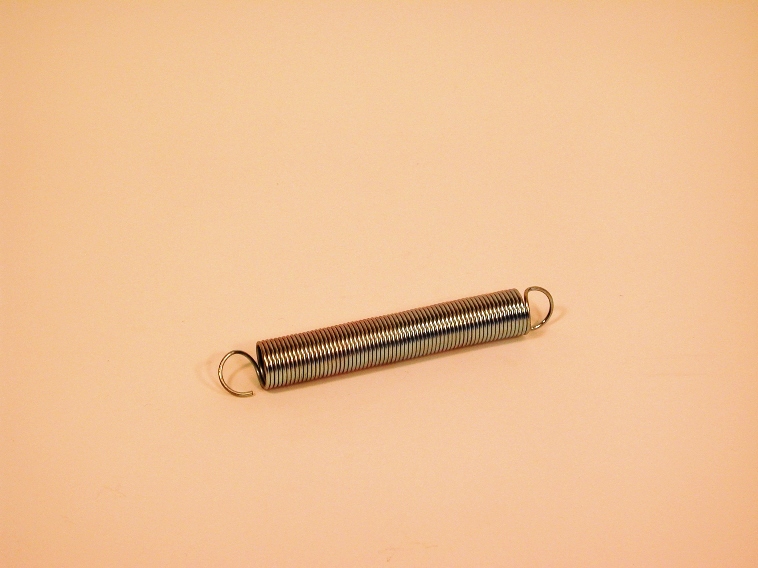

BD-067 SPRING, SHUTTLE RETURN CENTURY #643

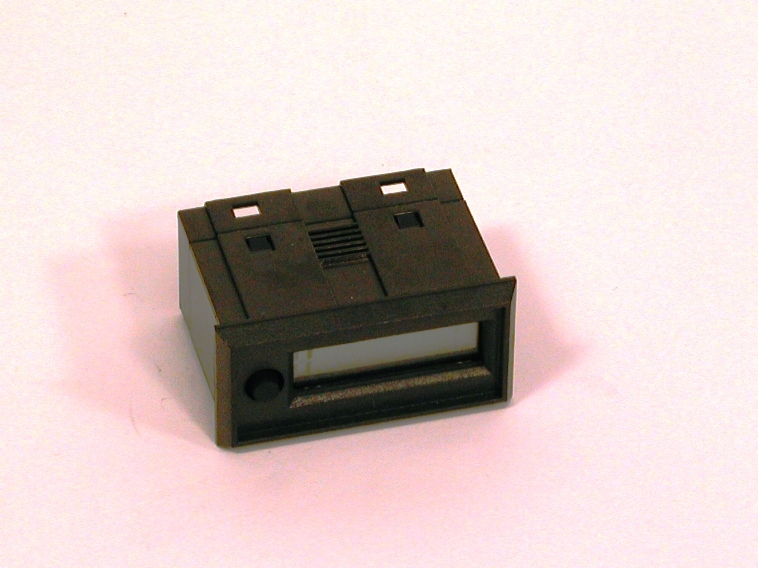

BD-068 COUNTER, NON-RESETTABLE ELECTRONIC, FOR ELECTRIC DISPENSER

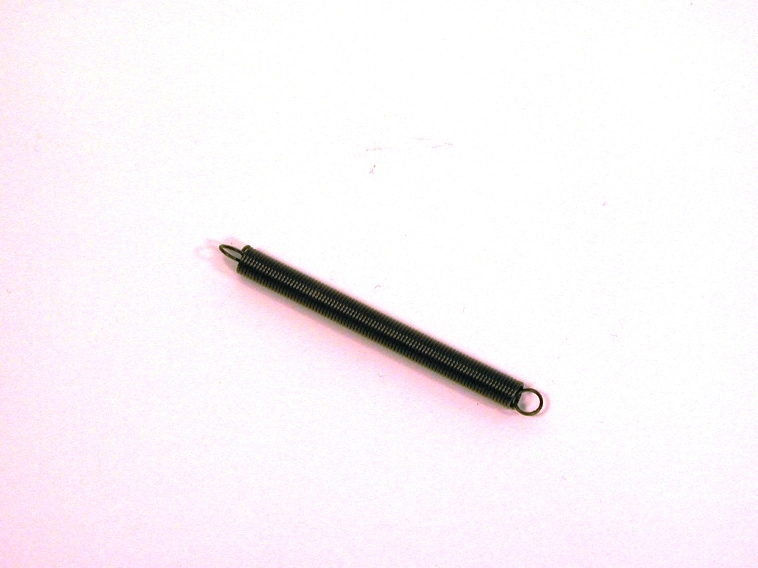

BD-069 SPRING, 2" REPLACEMENT, BLACK FOR COIN SLIDE, MONARCH #17M-1

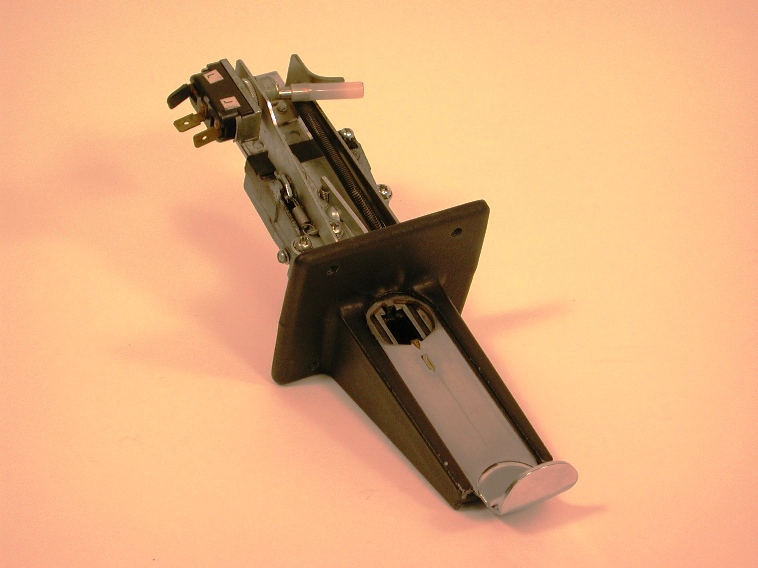

BD-0700 COIN SLIDE, H1 ELECTRIC, MTD-1, NEW

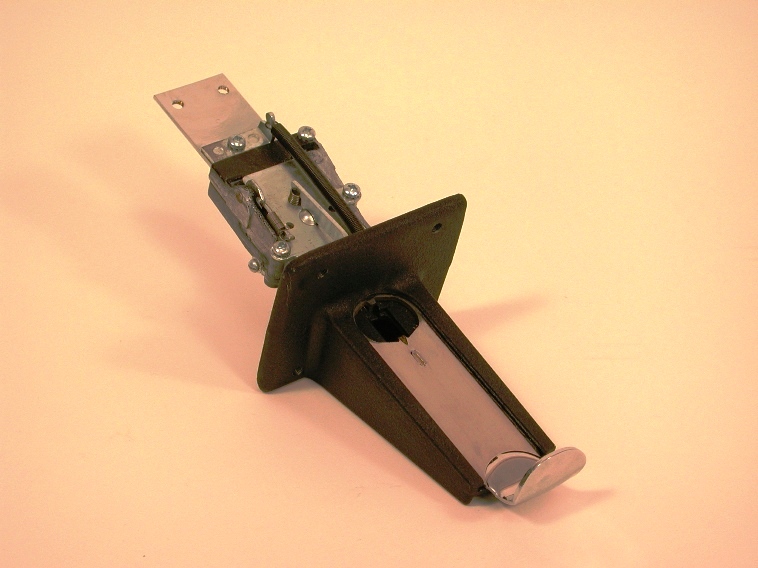

BD-0701 COIN SLIDE, H1 MAN, MTD-1, NEW MECHANISM FOR NEW EASY PICKER TOKEN

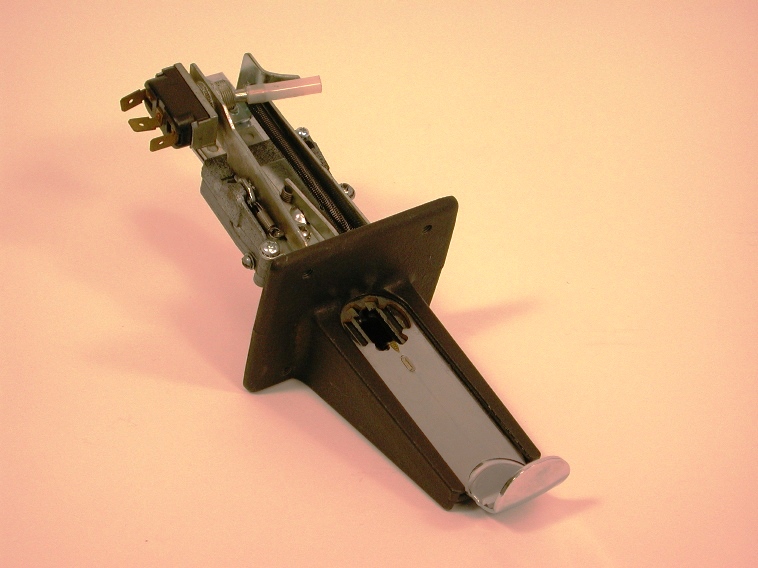

BD-072 COIN SLIDE, H1 ELECTRIC, BUTTERFLY
BD-074 COIN SLIDE, V4 MAN, QUARTER

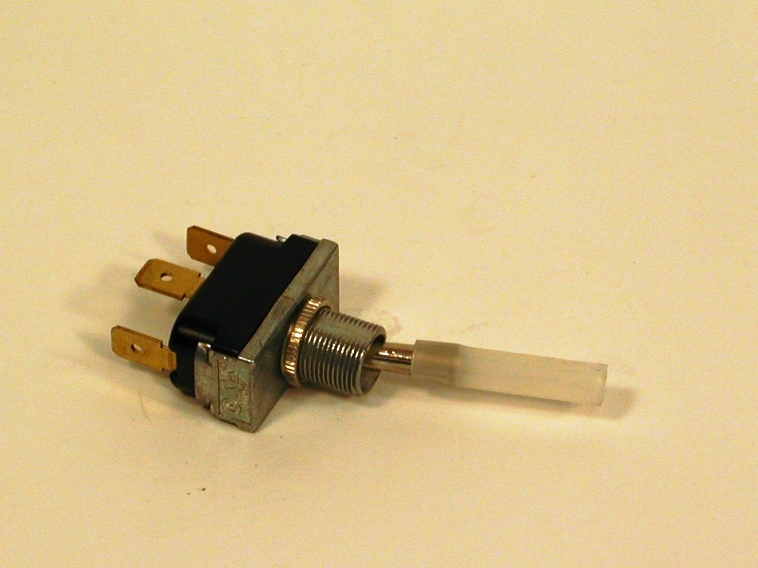

BD-076 SWITCH, TOGGLE, MONARCH REPLACEMENT - DISPENSER W/O COUNTER

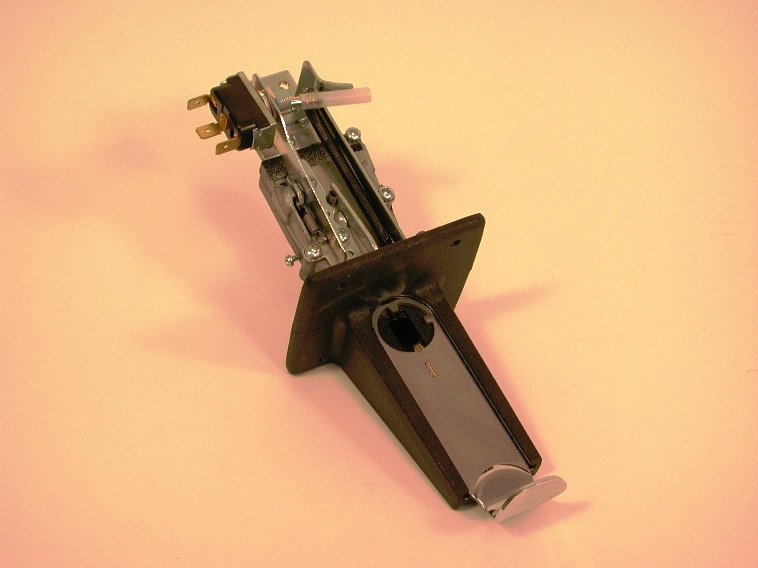

BD-078 COIN SLIDE, H1 ELECTRIC, MTD-4

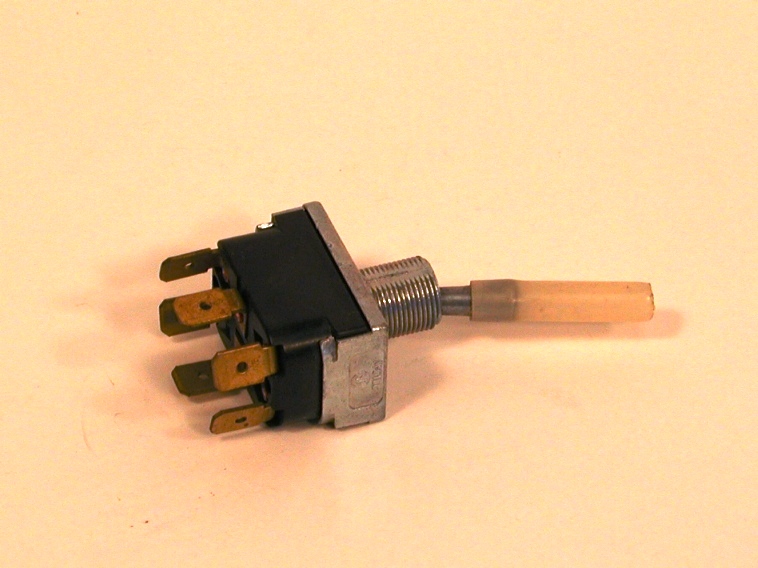

BD-081 DOUBLE POLE DBL THROW TOGGLE SW USE W/ELECT. NON-RESET COUNTER

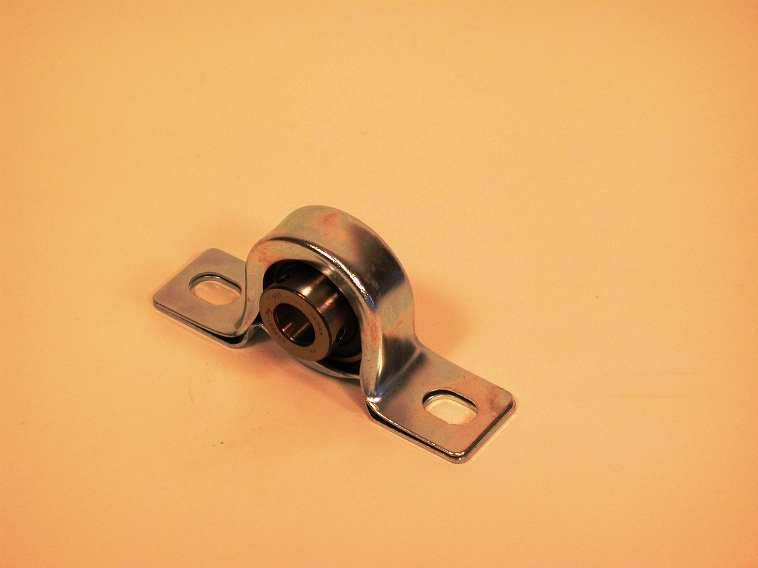

BD-084 BEARING, PILLOW BLOCK (EACH) BALL DISPENSER 2X897

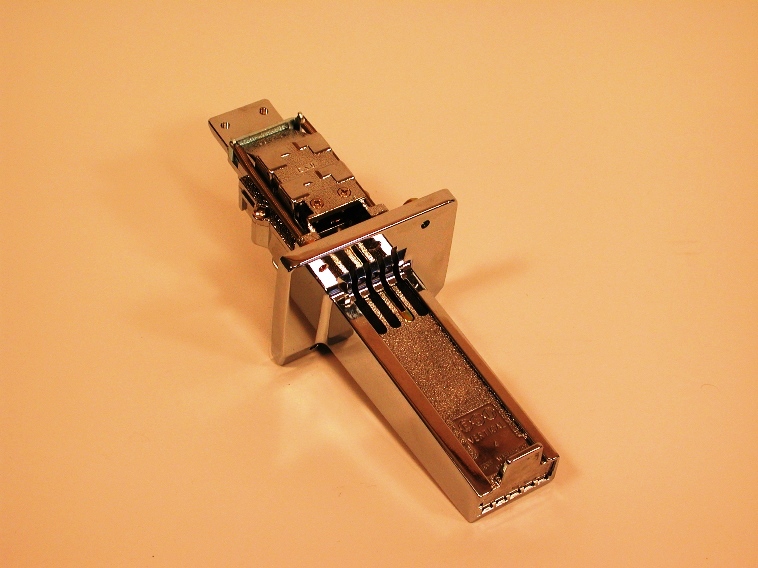

BD-085 COIN SLIDE, V4 MAN, .882 SPECIFY NUMBER OF OPENINGS

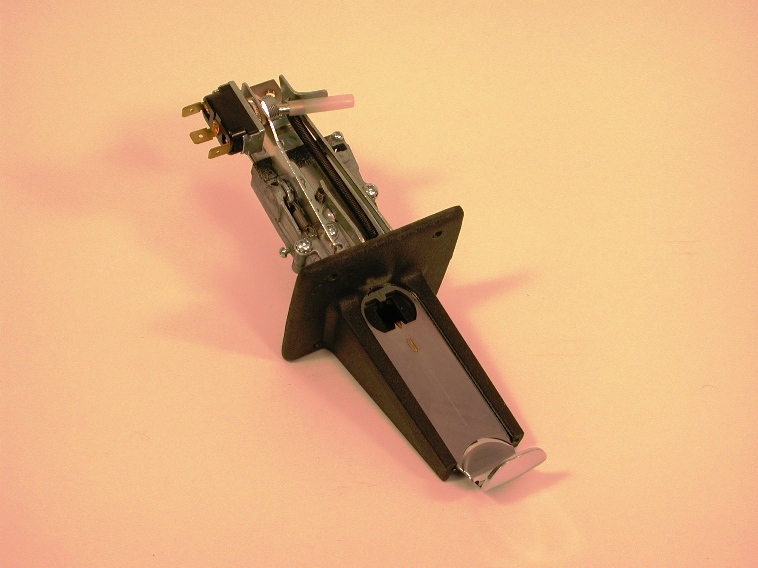

BD-086 COIN SLIDE, H1 ELECTRIC, MTD-3

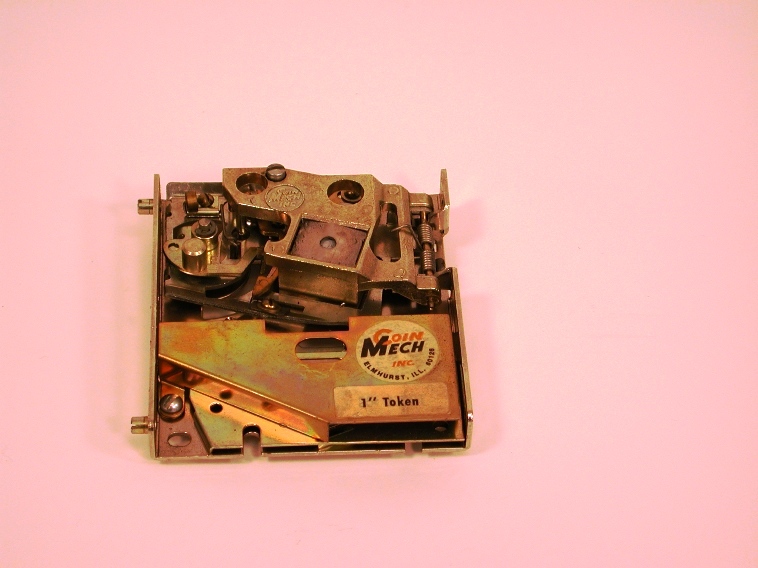

BD-088 COIN MECHANISM, 1.00 BRASS TOKEN

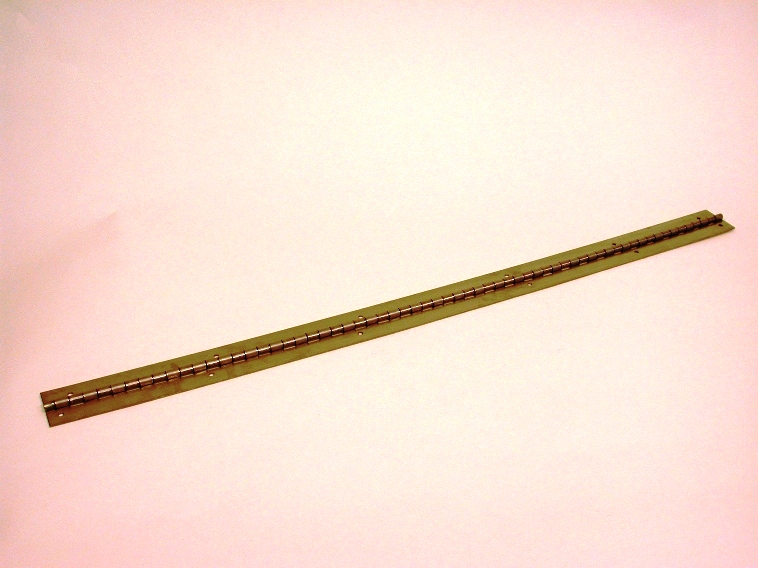

BD-102 HINGE, S.S. MARLBORO, 31-7/8"

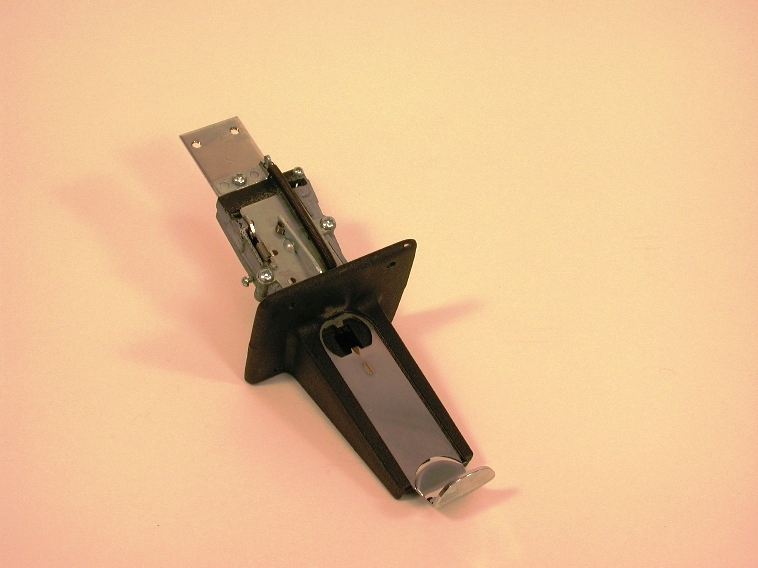

BD-103 COIN SLIDE, H1 MAN, MTD-3

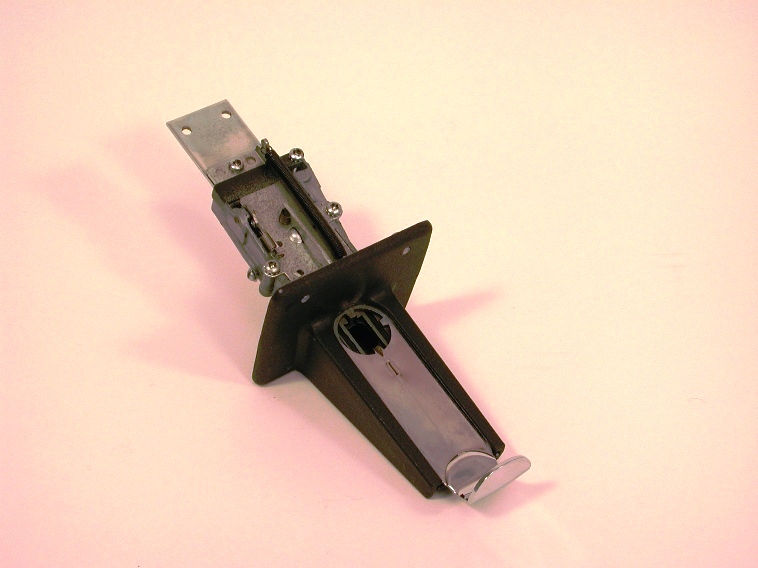

BD-104 COIN SLIDE, H1 MAN, MTD-4

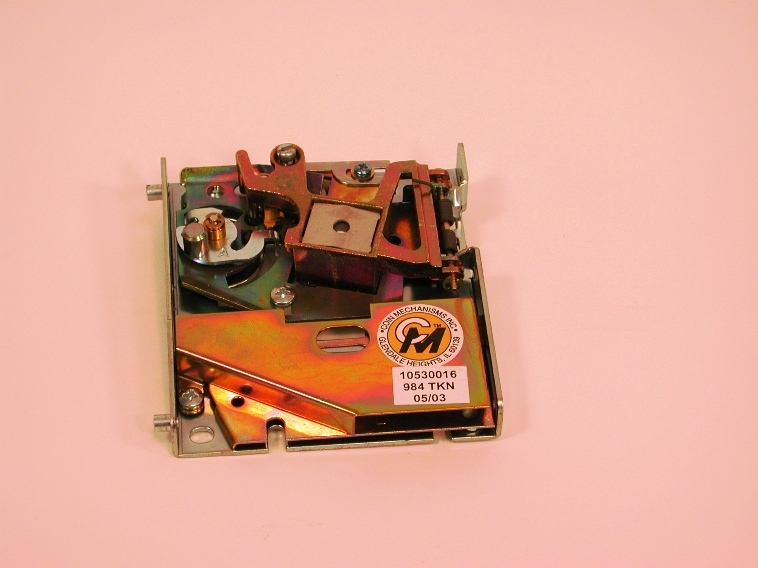

BD-108 COIN MECHANISM, .984,NICKEL-SILVER

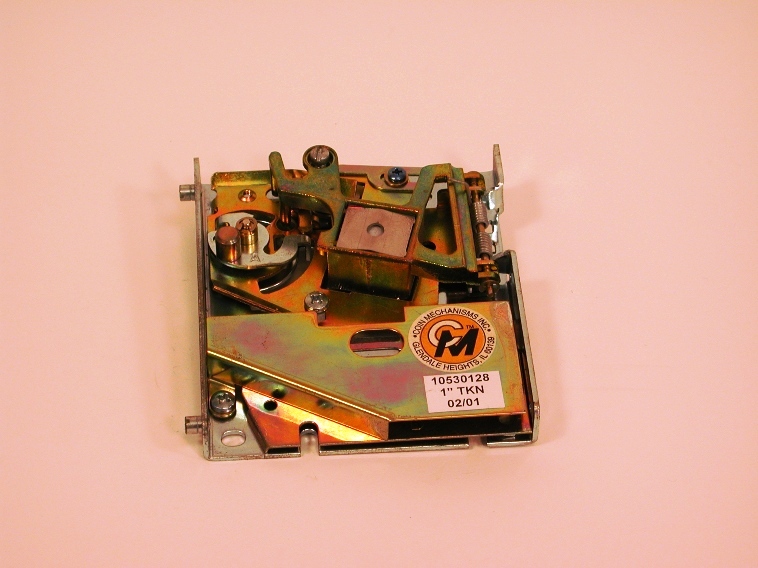

BD-109 COIN MECHANISM, 1.00, NICKEL-SILVER
BD-110 COIN SLIDE, V8 ELECTRIC, QUARTER
BD-114 COIN DROP MECHANISM, .984 STEP INCLUDES FRONT PLATE & MECHANISM

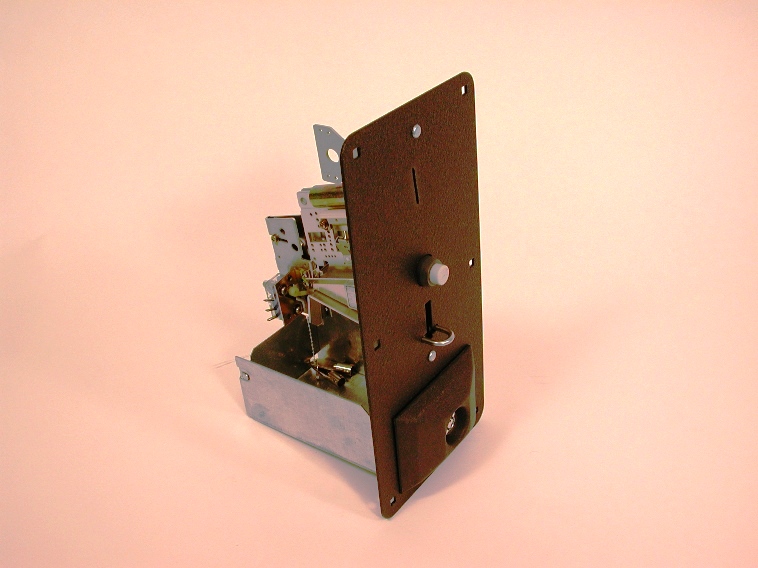

BD-115 COIN DROP MECHANISM, .900 STEP INCLUDES FRONT PLATE & MECHANISM

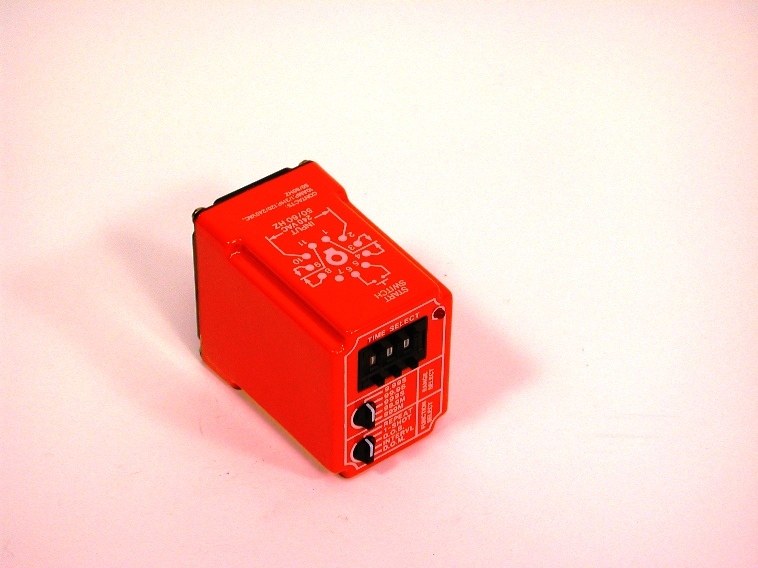

BD-116 TIMER, ORANGE, 220/240V

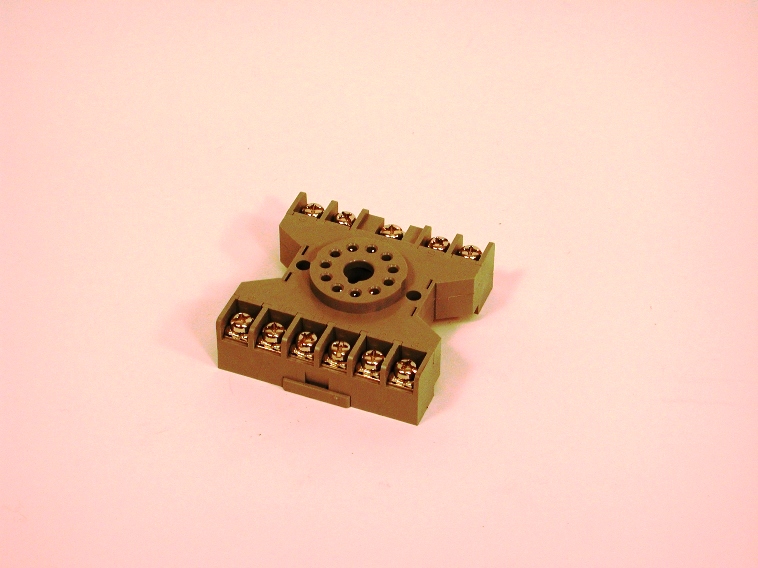

BD-117 SOCKET, 220/240V, 11 PIN

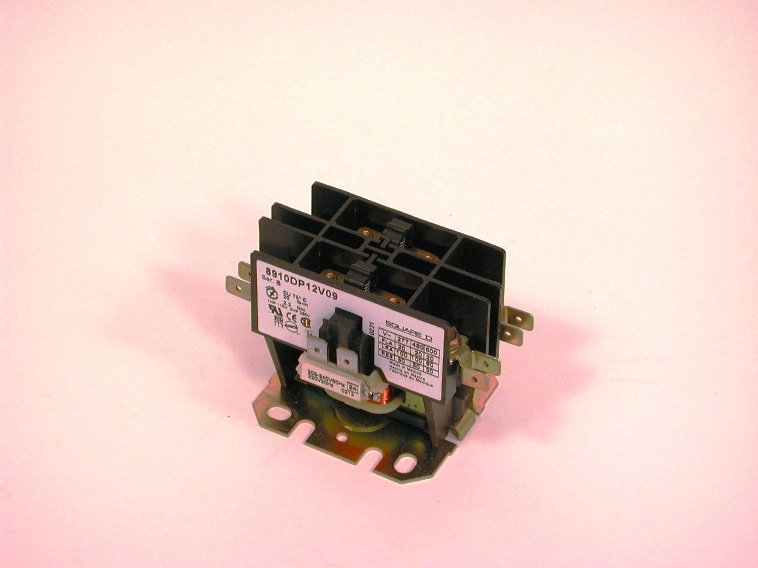

BD-118 CONTACTOR, 220/240V FURNAS 45CG10AGB 1P, INTERNATIONAL

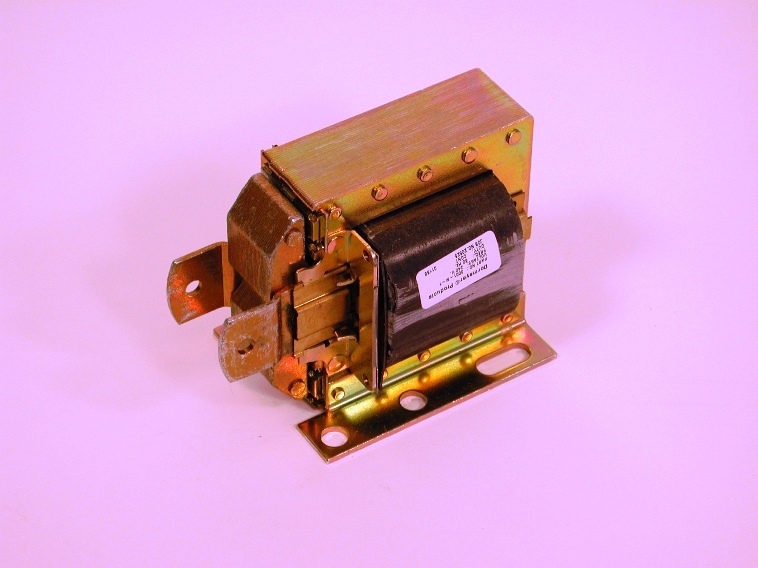

BD-119 SOLENOID, 220/240V 4X896 INTERNATIONAL

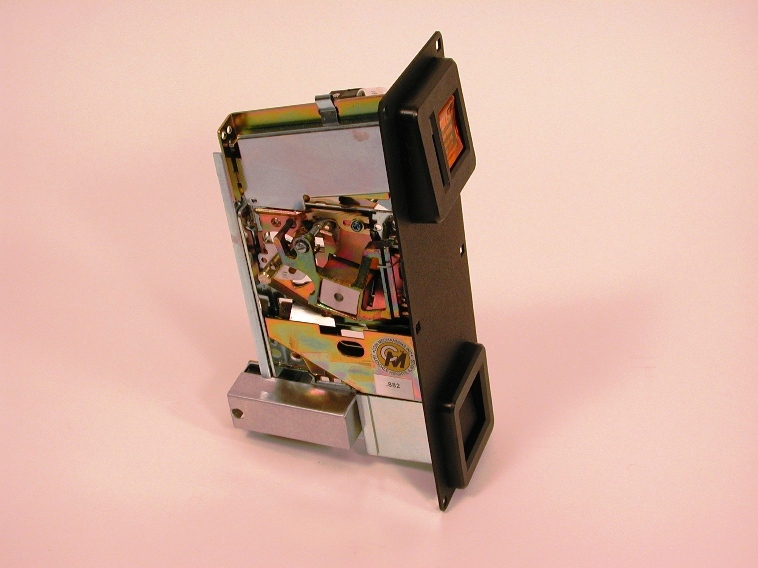

BD-121-.882 FRONT PLATE W/COIN MECH. ASSY. .882, BLACK

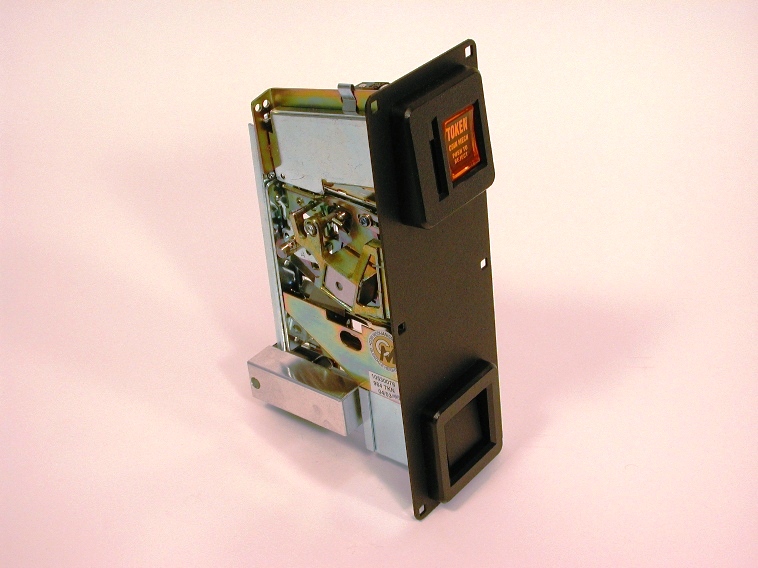

BD-121-.900 FRONT PLATE W/COIN MECH. ASSY. .900, BLACK

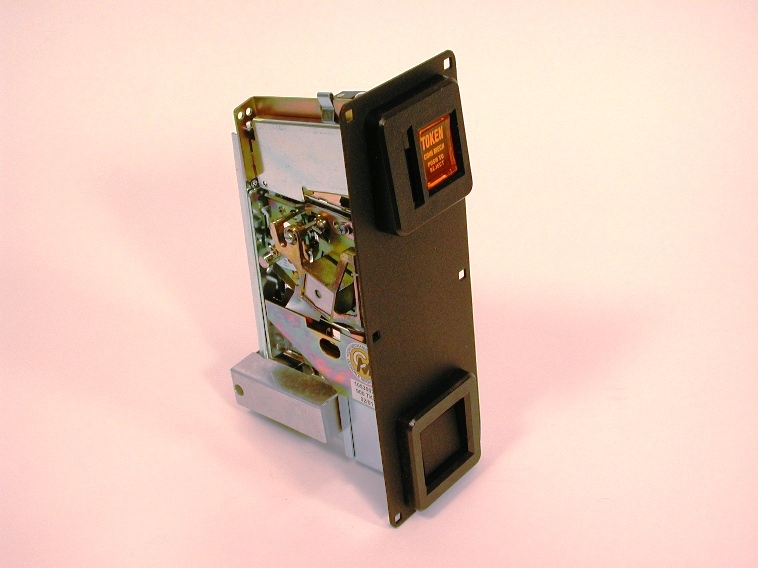

BD-121-.984 FRONT PLATE W/COIN MECH. ASSY. .984, BLACK

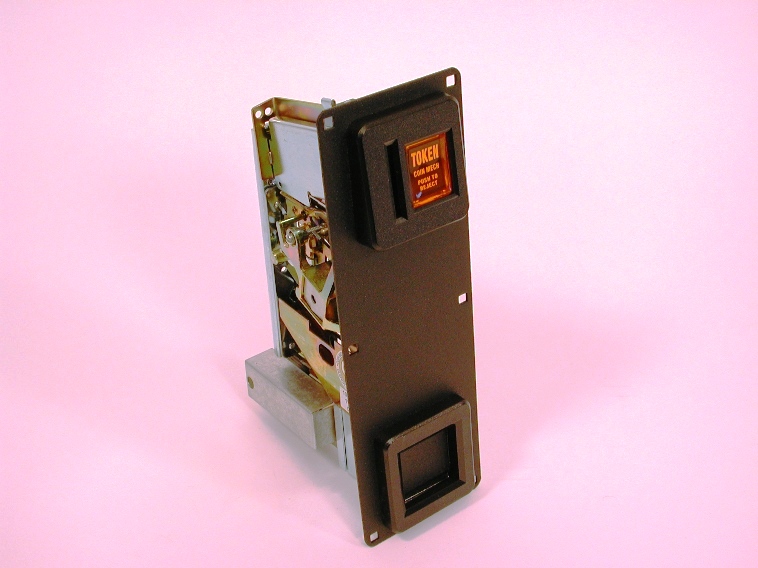

BD-121-1.0 FRONT PLATE W/COIN MECH. ASSY. 1.0 NICKEL/SILVER, BLACK

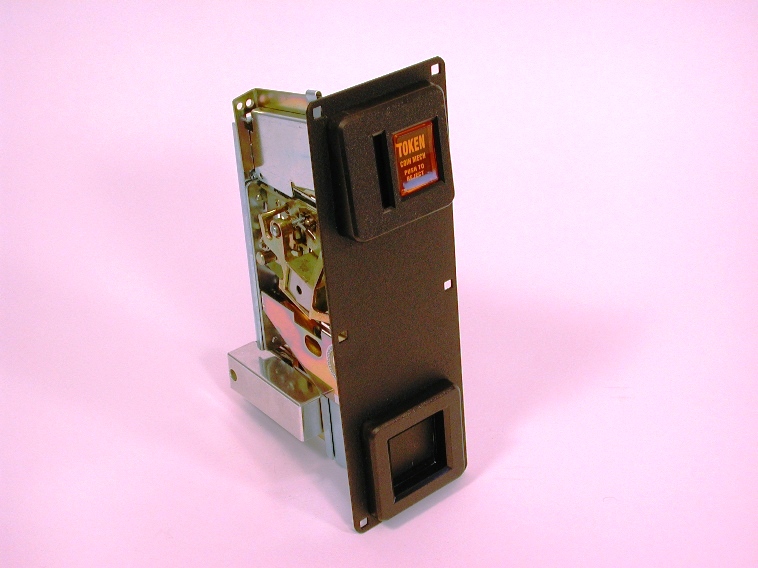

BD-121-1.125 FRONT PLATE W/COIN MECH. ASSY. 1.125, BLACK

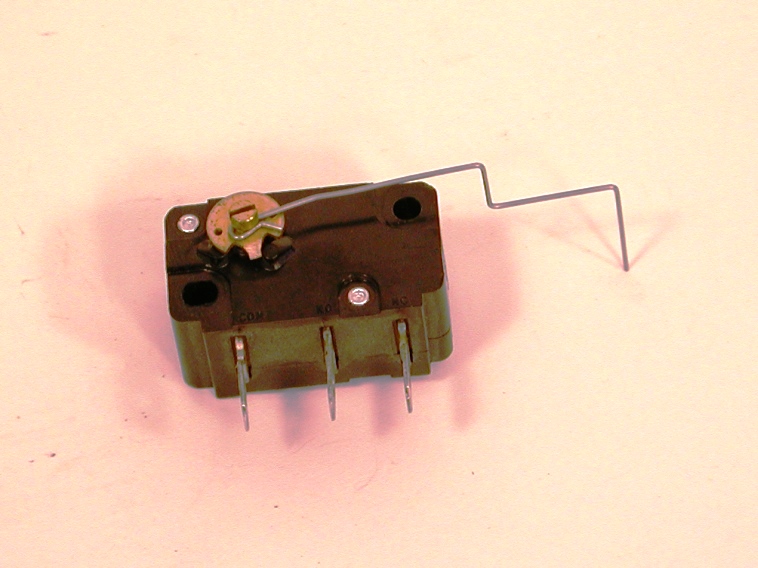

BD-121-MICRO SWITCH, MICRO (FOR .25, .900, .984, .882)

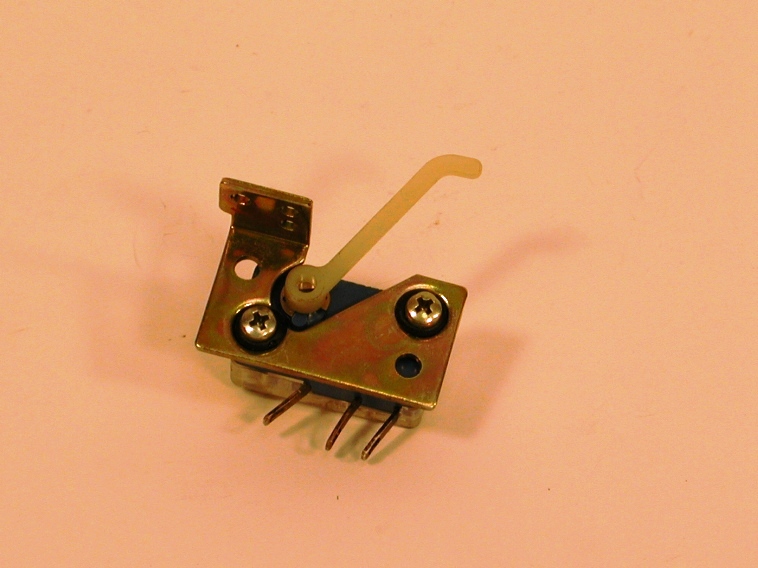

BD-121-MICRO9 MICRO SWITCH RIM/STEP .9/.984 REPLACEMENT 37

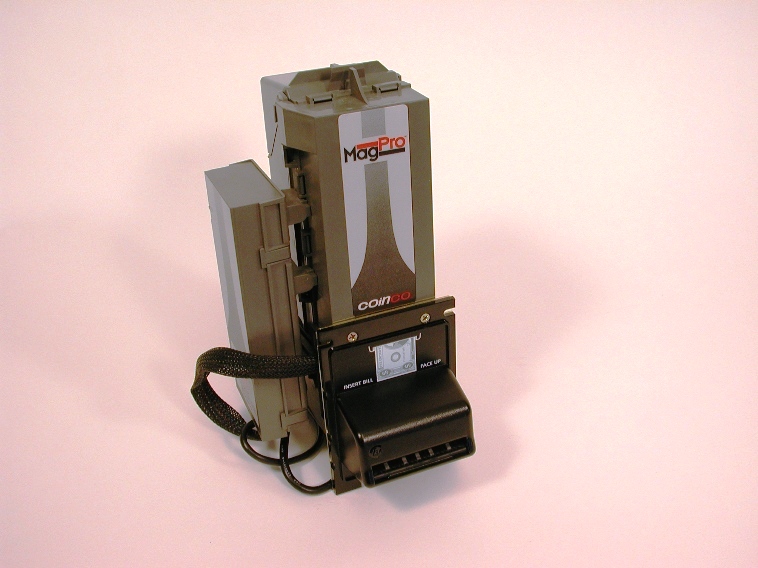

BD-122 BILL ACCEPTOR, 117VAC-450,BA50B DOLLAR BILL ACCEPTOR ONLY.

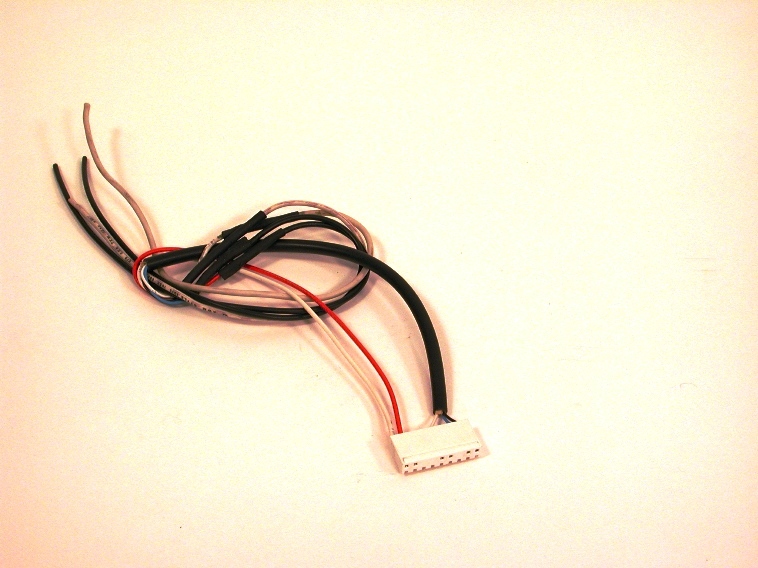

BD-122A WIRE HARNESS, 4 PIN PLUG #407419-1

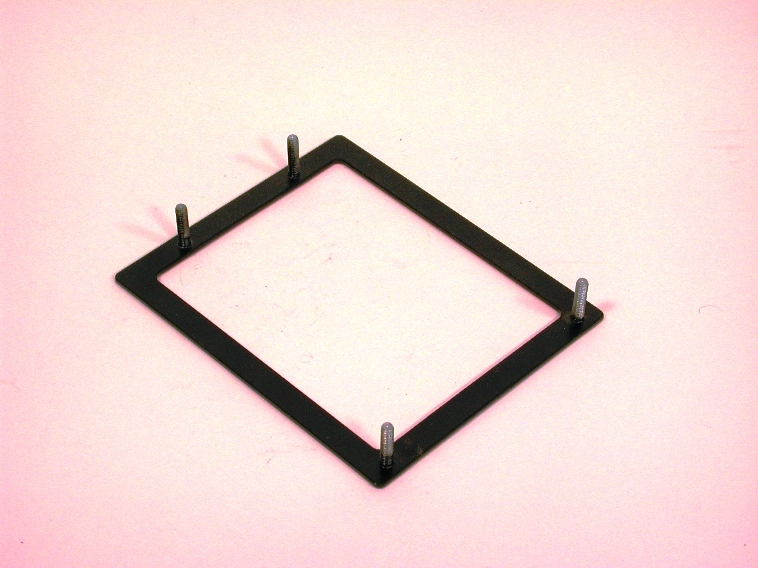

BD-122B BRACKET, BILL ACCEPTOR, #406575 PANEL FOR BD-122 (MOUNTING KIT)

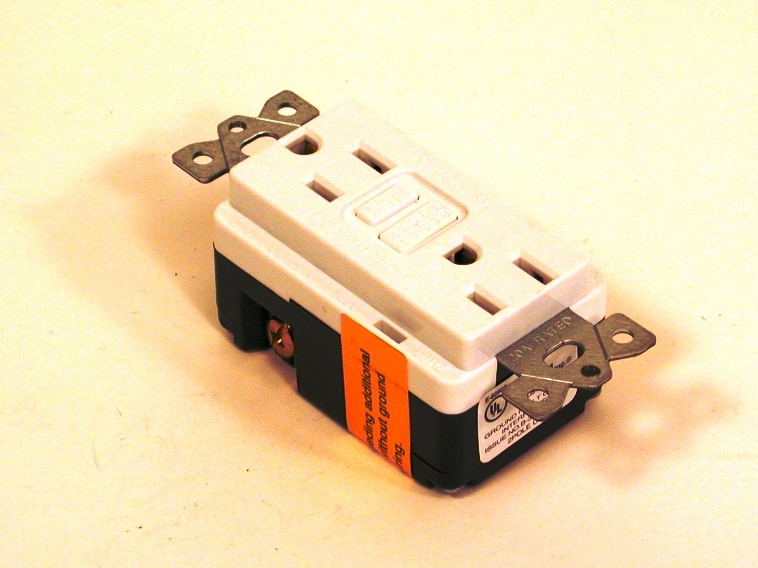

BD-49 RECEPTACLE, GFCI, LEVITON WHITE

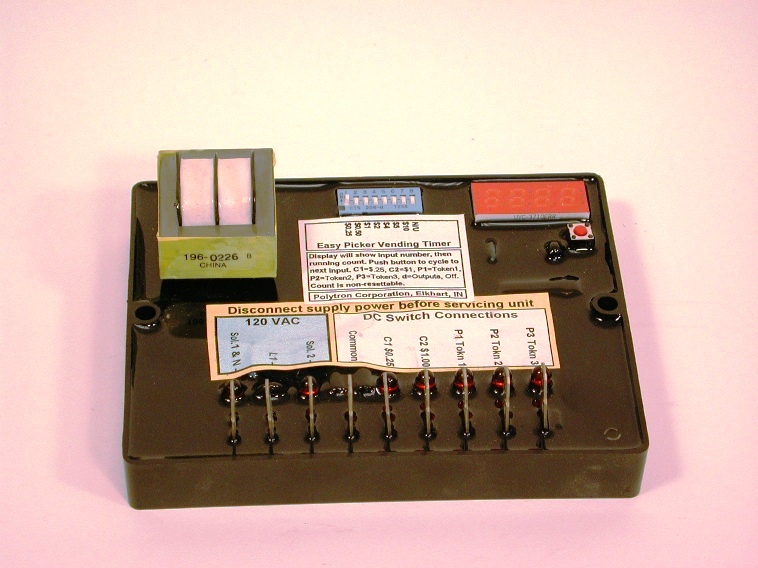

BD-500LED CONTROLLER 120V W/DISPLAY NON-RESETTING 4 DIGIT LED

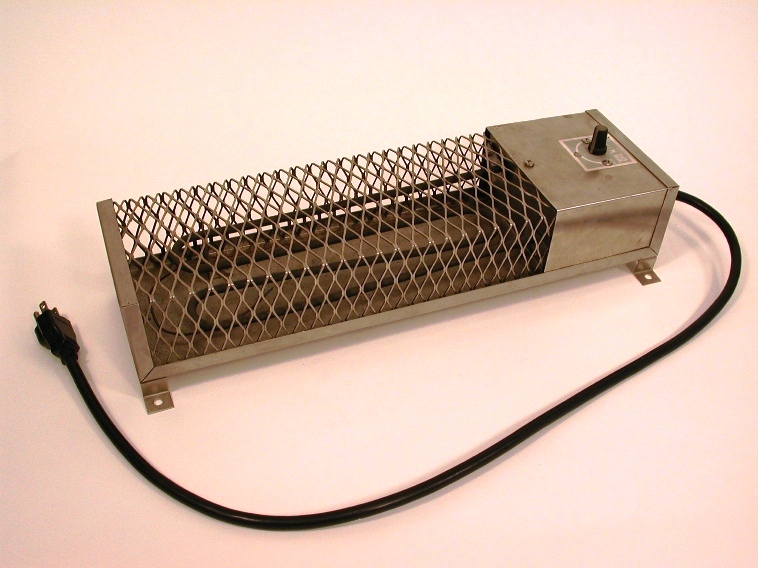

BD-925 HEATER, S.S. RADIANT 120 VAC 250 WATTS, 853 BTU

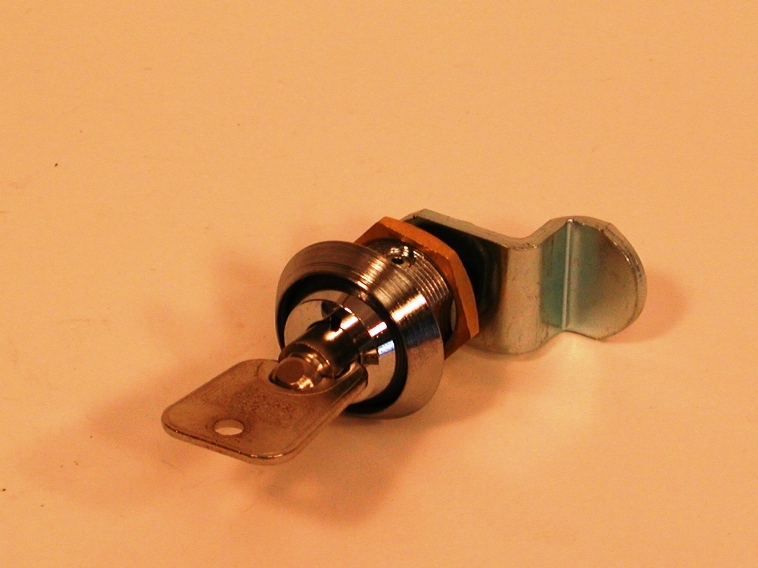

BD-938 KEY/CAM/COLLAR, #938-SET 1 lock & key to match 938 coin box

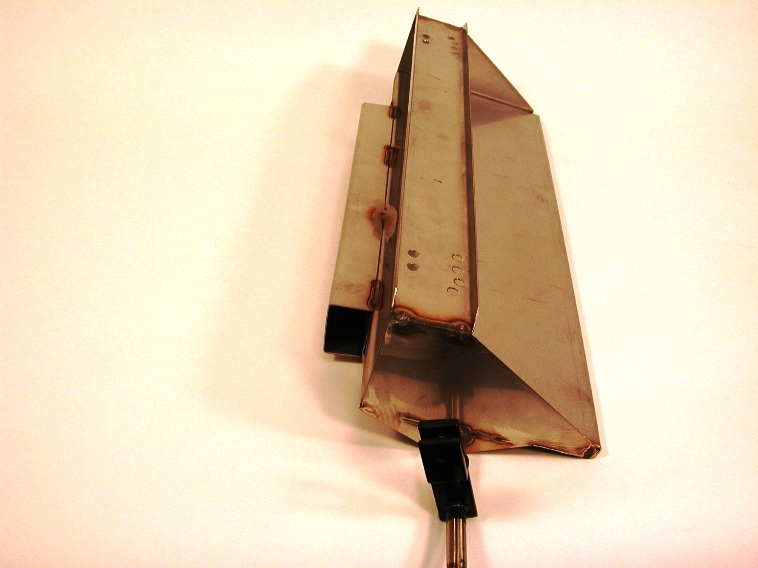

BD-SPEC-50 TRAY, SHUTTLE (TILT) 35-55 DROP FOR USE WITH BD-SPEC-50A

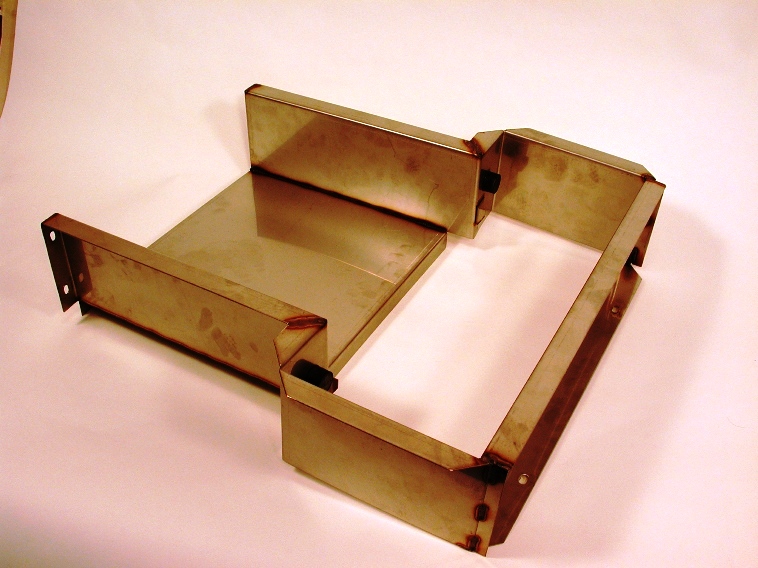

BD-SPEC-50A TRAY, DISPENSER, 35-55 DROP FOR USE WITH BD-SPEC-50

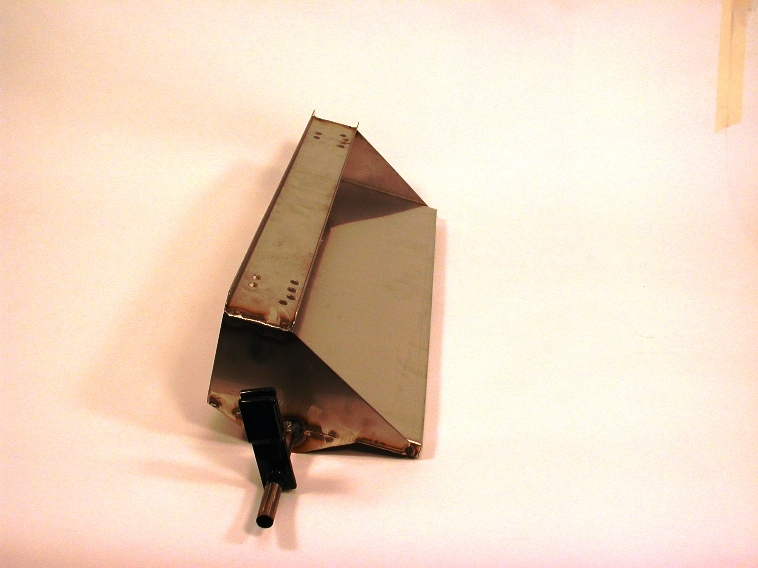

BD-STD-35 TRAY, SHUTTLE (TILT) 25-40 DROP FOR USE WITH BD-SPEC-50A

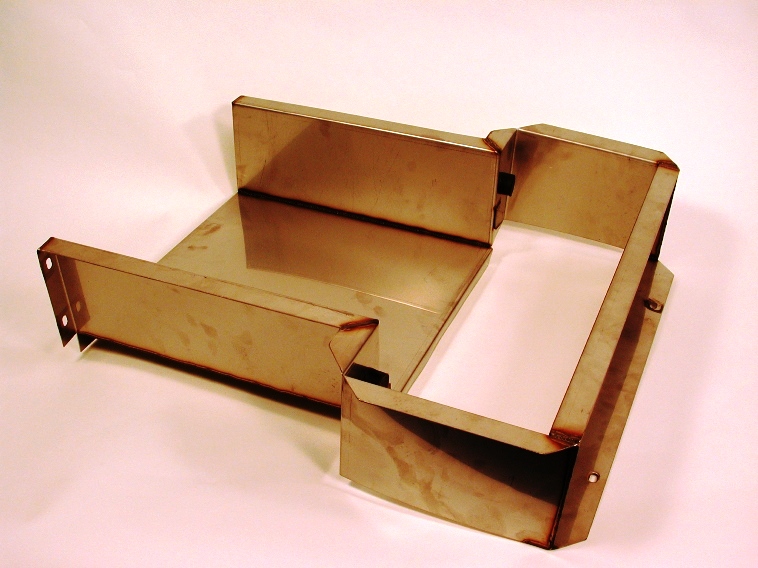

BD-STD-35A TRAY, DISPENSER, 25-40 DROP FOR USE WITH BD-STD-35
